Linux服务配置03

2019-06-11-Linux服务配置03

目录

1. 使用Squid部署代理缓存服务

1.1 Squid 替代用户向网站服务器请求页面数据并进行缓存,当用户再次再请求相同数据,则可以将存储服务器本地数据交付给用户,减少了用户等待时间,支持HTTP、FTP、SSL等多种协议

1.2 Squid分为正向代理 与 反向代理:

  • 正向代理: 用户(局域网)-> Squid-> 网站资源,以及基于ACL功能对用户访问网站进行限制,具体分为标准代理模式 与 透明代理模式。
    • 标准模式: 把网站数据缓存到本地服务器上,提高数据资源再次访问时的效率,但用户必须填写代理服务器IP与端口;
    • 透明模式: 不需要填写代理IP和端口号，是由DHCP服务器将网络配置信息分配给客户端主机;
  • 反向代理:让多节点主机反向缓存网站数据 服务器机房(多节点主机->Squid服务器->Internet->公网用户)

1.4 测试设备:

  • Squid服务器(内网卡:仅主机模式192.168.37.10，外网卡:桥接模式DHCP)
  • Windows客户端主机(网卡:仅主机模式192.168.37.20)

1.5 文件配置

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@xy ~]# vim /etc/squid/squid.conf
  http_port 312  							   # 监听端口 ✔
  cache_mem 64M								   # 内存缓冲区
  cache_dir ufs /var/spool/squid 2000 16 256   # 硬盘缓冲区
  cache_effective_user squid 				   # 设置缓存的有效用户
  cache_effective_group squid     			   # 设置缓存有效用户组
  dns_nameservers [IP]        				   # 一般不设置,用服务器默认的DNS
  cache_access_log /var/log/squid/access.log   # 访问日志文件的保存路径
  cache_log /var/log/squid/cache.log  		   # 缓存日志文件的保存路径
  visible_hostname xy.com    			       # 设置Squid服务器名称
[root@xy ~]# systemctl restart squid
[root@xy ~]# systemctl enable squid
  ln -s '/usr/lib/systemd/system/squid.service' '/etc/systemd/system/multi-user.target.wants/squid.service'

1.6 标准正向代理(IP: 192.168.37.10:3128)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@xy ~]# semanage port -l | grep squid_port_t           # /etc/squid/squid.conf
  squid_port_t        tcp      3128, 3401, 4827
  squid_port_t        udp      3401, 4827
[root@xy ~]# semanage port -a -t squid_port_t -p tcp 10000  # http_port 10000
  squid_port_t       tcp      10000, 3128, 3401, 4827
  squid_port_t       udp      3401, 4827
[root@xy ~]# vim /etc/squid/squid.conf    # Squid 提供的ACL功能
  acl client src = 192.168.37.20          # 仅允许192.168.37.20使用Squid提供的代理服务
  http_access allow client
  http_access deny all
[root@xy ~]# vim /etc/squid/squid.conf    # 禁止所有客户端访问网址包含liunx关键字的网站
  acl deny_keyword url_regex -i linux
  http_access deny deny_keyword
[root@xy ~]# vim /etc/squid/squid.conf    # 禁止所有客户端访问某个特定网站
  acl deny_url url_regex https://www.baidu.com
  http_access deny deny_url
[root@xy ~]# vim /etc/squid/squid.conf    # 禁止员工在企业网内部下载带有某些后缀的文件
  acl badfile urlpath_regex -i \.rar$ \.avi$
  http_access deny badfile

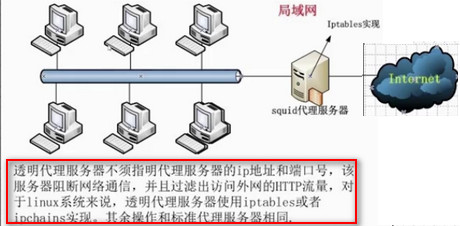

1.7 透明模式

没有配置DHCP服务的话,设置客户端地址192.168.10.20

1
[root@xy ~]# iptables -F

实现DNS地址解析服务53端口的数据转发功能(SNAT), -o 匹配外网网卡流出的流量

1
2
3
4
5
6
7
8
9
[root@xy ~]# iptables -t nat -A POSTROUTING -p udp --dport 53 -o eno33554968 -j MASQUERAD
[root@xy ~]# echo "net.ipv4.ip_forwrad=1" >> /etc/sysctl.conf 	# 开启路由转发功能
[root@xy ~]# sysctl -p
[root@xy ~]# net.ipv4.ip_forward = 1
[root@xy ~]# vim /etc/squid/squid.conf
  http_port 3128 transparent                  # 59, 开启透明模式
  cache_dir ufs /var/spool/squid 100 16 256  	# 62
[root@xy ~]# squid -k parse                   # 检测主配置文件是否有错
[root@xy ~]# squid -z                         # 对服务程序透明化进行初始化

SNAT 设置对网站80端口请求转发至Squid服务器本地3128端口

1
2
[root@xy ~]# iptables -t nat -A PREROUTING -p tcp -m tcp --dport 80 -j REDIRECT --to-ports 3128
[root@xy ~]# iptables -t nat -A POSTROUTING -s 192.168.37.0/24 -o eno33554968 -j SNAT --to 桥接网卡IP      # -o 匹配外网网卡流出的流量交给 外网卡

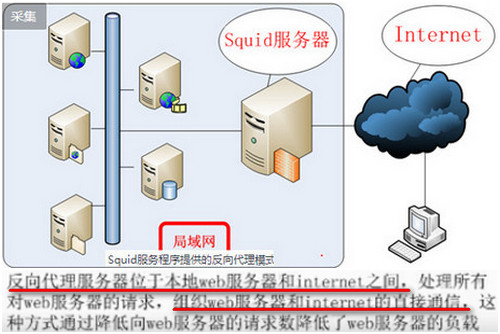

1.8 反向代理模式

1
2
3
[root@xy ~]# vim /etc/squid/squid.conf  	# 反向代理配置
  http_port 桥接网卡 IP:80 vhost  				       # 59
  cahe_peer 网站服务器 IP parent 80 0 originserver     # 60

2. 使用iSCSI(Internet Small Computer System Interface)

  • IDE(成熟稳定, 价格便宜并行传输接口)
  • SATA(传输速度更快, 数据校验更完整串行传输接口)
  • SCSI(计算机和硬盘, 光驱等设备间系统级接口通用标准; 系统资源占用率低, 转速快, 传输速度快)
  • 基于TCP/IP协议和SCSI接口协议的iSCSI是将SCSI接口与以太网技术结合的新型存储技术,可以来在网络中传输SCSI接口命令和数据;
  • 需要网卡传输, iSCSI-HBA网卡, 该网卡连接SCSI接口或者FC(光纤通道)总线和内存, 用于主机之间交换存储数据;

2.1 配置iSCSI服务端

2.1.2 创建RAID 5磁盘阵列:

1
2
[root@xy ~]# mdadm -Cv /dev/md0 -n 3 -l 5 -x 1 /dev/sdb /dev/sdc /dev/sdd /dev/sde
[root@xy ~]# mdadm -D /dev/md0 	# 查看设备详细信息

2.1.3 安装iSCSI服务端(192.168.37.1)：

1
2
3
4
[root@xy ~]# yum -y install targetd targetcli
[root@xy ~]# systemctl restart targetd
[root@xy ~]# systemctl enable targetd
  ln -s '/usr/lib/systemd/system/targetd.service' '/etc/systemd/system/multi-user.target.wants/targetd.service'
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
[root@xy ~]# targetcli       	# 交互式配置界面
	Warning: Could not load preferences file /root/.targetcli/prefs.bin.
	targetcli shell version 2.1.fb34
	Copyright 2011-2013 by Datera, Inc and others.
	For help on commands, type 'help'.

	+++++++++++++++++++++++++++加入md0阵列到共享设备资源池++++++++++++++++++++++++++++
	/> ls
	o- / ..................................................................... [...]
	o- backstores .......................................................... [...]
	| o- block .............................................. [Storage Objects: 0]
	| o- fileio ............................................. [Storage Objects: 0]
	| o- pscsi .............................................. [Storage Objects: 0]
	| o- ramdisk ............................................ [Storage Objects: 0]
	o- iscsi ........................................................ [Targets: 0]
	o- loopback ..................................................... [Targets: 0]
	/> cd /backstores/block     # 共享设备位置
	/backstores/block> create disk0 /dev/md0
	Create block storage object disk0 using /dev/md0.
	/backstores/block> cd
	/> ls
	o- / ..................................................................... [...]
  	o- backstores .......................................................... [...]
    o-disk0 ........................ [/dev/md0 (40.0GiB write-thru deactivated)]  #
  	| o- block .............................................. [Storage Objects: 0]
  	| o- fileio ............................................. [Storage Objects: 0]
  	| o- pscsi .............................................. [Storage Objects: 0]
  	| o- ramdisk ............................................ [Storage Objects: 0]
  	o- iscsi ........................................................ [Targets: 0]
  	o- loopback ..................................................... [Targets: 0]

	+++++++++++++++++++++++创建iSCSI target名称及配置共享资源+++++++++++++++++++++++++
	/> cd iscsi 	# 创建iSCSI target名称及配置共享资源
	/iscsi> create  #
	Created target iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d.
	Created TPG 1.
	/iscsi> cd iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d/
	/iscsi/iqn.20....ca5dd98d2e7d> ls
	o- iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d .............. [TPGs: 1]
  	o- tpg1 ............................................... [no-gen-acls, no-auth]
    o- acls .......................................................... [ACLs: 0]
    o- luns .......................................................... [LUNs: 0]
    o- portals .................................................... [Portals: 0]
	/iscsi/iqn.20....ca5dd98d2e7d> cd tpg1/luns #
	/iscsi/iqn.20...e7d/tpg1/luns> create /backstores/block/disk0   #
	Create LUN 0.

	++++++++++++++++++++++++++++++设置访问控制列表++++++++++++++++++++++++++++++++++
	/iscsi/iqn.20...e7d/tpg1/luns> cd..
	/iscsi/iqn.20...e7d/tpg1/luns> cd acls  # 设置访问控制列表
	/iscsi/iqn.20...d98d2e7d/tpg1> create iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d:client**
	Create Node ACL for iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d:client
	Create LUN 0.

	++++++++++++++++++++++++++++设置服务的监听IP及端口++++++++++++++++++++++++++++++++
	/iscsi/iqn.20...e7d/tpg1/luns> cd ..
	/iscsi/iqn.20...d98d2e7d/tpg1> cd portals
	/iscsi/iqn.20.../tpg1/portals> create 192.168.37.10
	Using default IP port 3260
	Created network portal 192.168.37.10:3260.

	+++++++++++++++++++++++++++++检测配置信息++++++++++++++++++++++++++++++++++++++++
	/iscsi/iqn.20.../tpg1/portals> ls      # 检测配置信息
	o- / ..................................................................... [...]
  	o- backstores .......................................................... [...]
  	| o- block .............................................. [Storage Objects: 0]
  	| | o-disk0 ...................... [/dev/md0 (40.0GiB write-thru deactivated)] #
  	| o- fileio ............................................. [Storage Objects: 0]
  	| o- pscsi .............................................. [Storage Objects: 0]
  	| o- ramdisk ............................................ [Storage Objects: 0]
  	o- iscsi ........................................................ [Targets: 1]
  	| o- iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d .......... [TPGs: 1] #
  	|   o- tpg1 ........................................... [no-gen-acls, no-auth]
  	|     o- acls ...................................................... [ACLs: 0]
  	|     | o- iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d:client......  #
  	[Mapped LUNs: 1]
  	|     | o- mapped_lun0 ............................... [lun0 block/disk0 (rw)] #
    o- luns .................................. [LUNs: 1]
        | o -lun0 ............................ [block/disk0 (dev/md0)]
  	|     o- portals ........................... [Portals: 1]
  	|       o- 192.168.37.10:3260 .............. [OK]  #
  	o- loopback ................................ [Targets: 0]
	/> exit
	Global pref auto_save_on_exit=true
	Last 10 configs saved in /etc/target/backup.
	Configuration saved to /etc/target/saveconfig.json
	++++++++++++++++++++++++++++++++++++++结束++++++++++++++++++++++++++++++++++++++

[root@xy ~]# firewall-cmd --permanent --add-port=3260/tcp
  success
[root@xy ~]# firewall-cmd --reload
  success

2.1.4 配置Linux iSCSI客户端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@xy ~]# yum install iscsi-initiator-utils
[root@xy ~]# vim /etc/iscsi/initiatorname.iscsi
  Initiatorname=iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d:clien
[root@xy ~]# iscsi -m discovery -t st -p 192.168.37.10    # 发现
  192.168.37.10:3260,1 iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d
[root@xy ~]# iscsiadm -m mode -T iqn.2003-01.org.linux-iscsi.xy.x8664:sn.ca5dd98d2e7d -p 192.168.37.10 --login                # 登陆
[root@xy ~]# file /dev/sdb
  /dev/sdb: block specile
[root@xy ~]# mkfs.xfs /dev/sdb           # 格式化
[root@xy ~]# mkdir /iscsi
[root@xy ~]# mount /dev/sdb /iscsi       # 挂载
[root@xy ~]# blkid | grep /dev/sdb
  /dev/sdb: UUID="b6b6d578-3ba5-450b-b967-d1a81a71d600" TYPE="xfs"
[root@xy ~]# /etc/fstab
  UUID="b6b6d578-3ba5-450b-b967-d1a81a71d600   /iscsi   xfs   defaults,_netdev   0 0
[root@xy ~]# iscsiadm -u   # 卸载网络设备

2.1.5 配置Windows iSCSI客户端

  • 系统安全->管理工具->iSCSI发起程序->目标填写iSCSI服务端IP->快速连接->配置->更改->填写服务端ACL所定义的名称

3. 使用MariaDB数据库管理系统

1
2
3
4
[root@xy ~]# yum -y install mariadb mariadb-server
[root@xy ~]# systemctl restart mariadb
[root@xy ~]# systemctl enable mariadb
  ln -s '/usr/lib/systemd/system/mariadb.service' '/etc/systemd/system/multi-user.target.wants/mariadb.service'

3.1 数据库初始化

命令 作用 eg.
set 设置密码 set password=password(‘123456’);
show 展示数据库, 表, 权限 show databases;
— — show tables;
— — show grants for anyue@localhost;
use 指定使用数据库 use anyue;
grant 授予权限 grant 权限 on 库名.表名 to 用户名@主机名;
revoke 移除权限 revoke 权限 on 库名.表名 from 用户名@主机名;
create 创建数据库, 用户, 表单 create database anyue;
— — create user anyue@localhost identified by ‘123456’;
— — create table mybook (name char(15),price int,pages int);
insert 增(增加表单数据) insert into mybook(name,price,pages) values(‘ES’,’60’,’10’);
update 改(改动表单数据) update 表单 set attr=新值 where attr=初值;
— — update mybook set price=55;
delete 删(删除表单数据) delete form 表单名 where atrr=值;
select 查(表单数据) select user,host,password from user where=’anyue’;
— — select * from mybook where price>75;
— — select name,price from mybook;
describe 描述表单(desc) desc mybook;
drop 删数据库,表,用户 drop anyue;
alter 修改表描述 alter table 表单名
— — alter table mybook add(字段名1 字段类型1,…);
— — a lter table mybook modify 字段名1 字段类型1;
— — alter table mybook drop 字段名;
— — alter table mybook 原表名 rename to 新表名;
mysqldump 备份数据库 mysqldump -uroot -p anyue >/root/anyue.dump
— 还原数据库 mysql -uroot -p anyue </root/anyue.dump
like 模糊查询 % 或者 _
1
2
3
4
5
6
[root@xy ~]# mysql: emp,dept,salgrate
[root@xy ~]# mysql_secure_installation  # mariaDB初始化
[root@xy ~]# firewall-cmd --permanent --add-service=mysql
  success
[root@xy ~]# firewall-cmd --reload
  success

3.2 基本操作

mysql参考

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[root@xy ~]# mysql -uroot -p         # 进入数据库
MariaDB [(none)]> show databases;    # show databses 显示数据库
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  | performance_schema |
  +--------------------+
  3 rows in set (0.03 sec)
MariaDB [(none)]> set password = password('123456');  	# 修改密码
MariaDB [(none)]> alter user 'root'@'localhost' identified by '123456';
MariaDB [(none)]> alter database testdb character set utf8;
MariaDB [(none)]> create user anyue@localhost indentified by '123456';
  Query OK, 0 rows affected (0.00 sec)
  # 创建用户  create user 用户名@主机名 identified by 'PASSWORD'
MariaDB [(none)]> use mysql;
MariaDB [mysql]> select user,host,password from user where user='anyue';  # 选择用户
  +-------+-----------+-------------------------------------------+
  | user  | host      | password                                  |
  +-------+-----------+-------------------------------------------+
  | anyue | localhost | *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9 |
  +-------+-----------+-------------------------------------------+
  1 row in set (0.00 sec)
MariaDB [(none)]> quit;
Bye

3.3 授予权限操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
[root@xy ~]# mysql -uanyue -p       # mysql -uusername -p
MariaDB [(none)]> show databases;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  +--------------------+
  1 row in set (0.01 sec)
MariaDB [(none)]> quit;
  Bye

+ GRANT 权限 ON 数据库.表单名称 TO 账户名@主机名  # 授予权限 GRANT
+ GRANT 权限 ON 数据库.* TO 账户名@主机名
+ GRANT 权限 ON *.* TO 账户名@主机名
+ GRANT 权限1,权限2 ON 数据库.* TO 账户名@主机名
+ GRANT ALL PRIVILEGES ON *.* TO 账户名@主机名

[root@xy ~]# mysql -u root -p
MariaDB [(none)]> grant select,update,delete,insert on mysql.user to anyue@localhost;  # 赋予anyue权限
MariaDB [(none)]> show grants for anyue@localhost;   # 查看anyue权限
  +-------------------------------------------------------------------------------------------------------------+
  | Grants for anyue@localhost                                                                                   |
  +-------------------------------------------------------------------------------------------------------------+
  | GRANT USAGE ON *.* TO 'anyue'@'localhost' IDENTIFIED BY PASSWORD '*6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9' |
  | GRANT SELECT, INSERT, UPDATE, DELETE ON mysql.user TO 'anyue'@'localhost'                                |
  +-------------------------------------------------------------------------------------------------------------+
  2 rows in set (0.00 sec)
MariaDB [(none)]> quit
  Bye

3.4 移除权限操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@xy ~]# mysql -uanyue -p
MariaDB [(none)]> show databases;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  +--------------------+
  2 rows in set (0.01 sec)
MariaDB [(none)]> use mysql;
MariaDB [mysql]> show tables;
  +-----------------+
  | Tables_in_mysql |
  +-----------------+
  | user            |
  +-----------------+
  1 row in set (0.01 sec)
MariaDB [(none)]> quit;
  Bye
---

[root@xy ~]# mysql -uroot -p
MariaDB [(none)]> use mysql;
MariaDB [mysql]> revoke select,update,delete,insert on mysql.user from anyue@localhost;  # 移除对anyue的授权 REVOKE
MariaDB [(none)]> revoke select,update,insert,delete on mysql.user from xy@localhost;
MariaDB [(none)]> revoke all privileges on *.* from anyue@localhost;
  Query OK, 0 rows affected (0.01 sec)
MariaDB [mysql]> show grants for anyue@localhost;
  +-------------------------------------------------------------------------------------------------------------+
  | Grants for anyue@localhost                                                                                   |
  +-------------------------------------------------------------------------------------------------------------+
  | GRANT USAGE ON *.* TO 'anyue'@'localhost' IDENTIFIED BY PASSWORD '*6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9' |
  +-------------------------------------------------------------------------------------------------------------+
  1 row in set (0.01 sec)
MariaDB [(none)]> quit;
  Bye

3.5 数据库 表单操作

  • CREATE DATABASE 数据库名称
  • DESCRIBE 表单名称(DESC)
  • UPDATE 表单名称 SET attribute=新值 WHERE attribute=旧值
  • USE 数据库名称
  • SHOW databases # 显示当前已有的数据库
  • SHOW tables # 显示当前数据库中的表单
  • SELECT * FROM 表单名称
  • DELETE FROM 表单名 WHERE attribute=值
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
[root@xy ~]# mysql -u root -p
MariaDB [(none)]> create database mybook;  # 创建数据库xy
  Query OK, 1 row affected (0.01 sec)
MariaDB [(none)]> show databases;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  | performance_schema |
  | mybook             |
  +--------------------+
  4 rows in set (0.02 sec)

MariaDB [(none)]> use mybook;
  Database changed
MariaDB [xy]> create table mybook (name char(15),price int,pages int); # 创建表单
  Query OK, 0 rows affected (0.03 sec)
MariaDB [xy]> desc mybook; 		# desc mybook;
  +-------+----------+------+-----+---------+-------+
  | Field | Type     | Null | Key | Default | Extra |
  +-------+----------+------+-----+---------+-------+
  | name  | char(15) | YES  |     | NULL    |       |
  | price | int(11)  | YES  |     | NULL    |       |
  | pages | int(11)  | YES  |     | NULL    |       |
  +-------+----------+------+-----+---------+-------+
  3 rows in set (0.02 sec)
MariaDB [xy]> insert into mybook(name,price,pages) values('MC','60','518');  # 往表单mybook插入数据
MariaDB [xy]> select * from mybook;     # 选择表单内容
  +------------+-------+-------+
  | name       | price | pages |
  +------------+-------+-------+
  | MC         |    60 |   518 |
  +------------+-------+-------+
  1 row in set (0.00 sec)

MariaDB [xy]> update mybook set price=55;  # 更新表单内容
  Query OK, 1 rows affected (0.01 sec)
  Rows matched: 1  Changed: 1  Warnings: 0
MariaDB [xy]> select name,price from mybook;
  +------------+-------+
  | name       | price |
  +------------+-------+
  | MC         |    50 |
  +------------+-------+
  1 rows in set (0.01 sec)
MariaDB [xy]> delete from mybook;
  Query OK, 1 rows affected (0.01 sec)
MariaDB [xy]> selete * from mybook;
  Empty set (0.01 sec)
MariaDB [(none)]> quit;
  Bye

3.6 数据库where命令

=、<>或!=、>、<、>= 大于或等于、<= 小于或等于
BETWEEN 在某个范围内、 LINK 搜索一个例子、IN 在列中搜索多个值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
[root@xy ~]# mysql -u root -p
MariaDB [xy]> select * from mybook;
  +-------------+-------+-------+
  | name        | price | pages |
  +-------------+-------+-------+
  | ShenQu      |    58 |   800 |
  | MC          |    60 |   518 |
  | Baoliandeng |    70 |    65 |
  | xy          |    45 |    83 |
  | xy1         |    45 |    83 |
  +-------------+-------+-------+
  5 rows in set (0.00 sec)
MariaDB [xy]> select * from mybook where price>45;
  +-------------+-------+-------+
  | name        | price | pages |
  +-------------+-------+-------+
  | ShenQu      |    58 |   800 |
  | MC  		   |    60 |   518 |
  | Baoliandeng |    70 |    65 |
  +-------------+-------+-------+
  3 rows in set (0.00 sec)
MariaDB [xy]> select * from mybook where price!=60;
  +-------------+-------+-------+
  | name        | price | pages |
  +-------------+-------+-------+
  | ShenQu      |    58 |   800 |
  | Baoliandeng |    70 |    65 |
  | xy          |    45 |    83 |
  | xy1         |    45 |    83 |
  +-------------+-------+-------+
  4 rows in set (0.01 sec)
MariaDB [(none)]> quit;
  Bye

3.7 数据库的备份mysqldump

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@xy ~]# mysqldump -uroot -p xy > /root/xy.dump
  Enter password:
[root@xy ~]# mysql -uroot -p
MariaDB [(none)]> drop database xy;
  Query OK, 1 row affected (0.03 sec)
MariaDB [(none)]> show databases;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  | performance_schema |
  +--------------------+
  3 rows in set (0.01 sec)
MariaDB [(none)]> create database xy;
  Query OK, 1 row affected (0.01 sec)
MariaDB [(none)]> quit;
  Bye

3.8 数据库还原

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@xy ~]# mysql -uroot -p xy < /root/xy.dump   # xy 是 数据库，不是密码
  Enter password:
[root@xy ~]# mysql -uroot -p
MariaDB [(none)]> use xy;
MariaDB [xy]> show tables;
  +--------------+
  | Tables_in_xy |
  +--------------+
  | mybook       |
  +--------------+
  1 row in set (0.00 sec)
MariaDB [xy]> desc mybook;
  +-------+----------+------+-----+---------+-------+
  | Field | Type     | Null | Key | Default | Extra |
  +-------+----------+------+-----+---------+-------+
  | name  | char(15) | YES  |     | NULL    |       |
  | price | int(11)  | YES  |     | NULL    |       |
  | pages | int(11)  | YES  |     | NULL    |       |
  +-------+----------+------+-----+---------+-------+
  3 rows in set (0.01 sec)
MariaDB [(none)]> quit;
  Bye

练习:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
[root@Xingyue ~]# mysql -uroot -p
MariaDB [(none)]> show databases;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  | performance_schema |
  +--------------------+
  3 rows in set (0.00 sec)
MariaDB [(none)]> grant all privileges on *.* to anyue@localhost identified by '123456'
MariaDB [(none)]> grant all privileges on *.* to root@localhost identified by '123456'
MariaDB [(none)]> grant all privileges on *.* to root@127.0.0.1 identified by '123456'
MariaDB [(none)]> use mysql;
MariaDB [(none)]> select user,host,password from mysql.user;
  +---------+-----------+-------------------------------------------+
  | user    | host      | password                                  |
  +---------+-----------+-------------------------------------------+
  | root    | localhost | *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9 |
  | root    | 127.0.0.1 | *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9 |
  | root    | ::1       | *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9 |
  | anyue   | 127.0.0.1 | *6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9 |
  +---------+-----------+-------------------------------------------+
  4 rows in set (0.00 sec)

binlog日志

1
2
3
4
[root@xy ~]# vim /etc/my.cnf
  log-bin=mysql-bin	          # 开启二进制日志, 只记录增删改
[root@xy ~]# mysqlbinlog --start-datetime 'Y-M-D H:M:S' --stop-datetime 'Y-M-D H:M:S' |mysql -uroot -p
[root@xy ~]# mysqlbinlog --start-position --stop-position |mysql -uroot -p

MySQL主从备份(备份,负载均衡):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[root@xy ~]# vim /etc/my.cnf
  主: 192.168.10.10
  [mysqld]
  log-bin=mysql.bin
  server-id=10
mysql> grant replication slave on *.* to slave@'192.168.10.20' identified by '123456';
mysql> show master status;  # replication 拷贝
  +------------------+----------+--------------+-------------------+
  | Fiel             | Position | Binlog_Do_DB | Binglog_Ignore_DB |
  +------------------+----------+--------------+-------------------+
  | mysql-bin.000003 |      257 |              |                   |
  +------------------+----------+--------------+-------------------+
---

备: 192.168.10.20
  [mysqld]
  log-bin=mysql.bin
  server-id=20
mysql> change master to
	-> master_user='slave',
	-> master_password='123456',
	-> master_host='192.168.10.10',
	-> master_log_file='mysql-bin.000003',
	-> master_log_pos=257;
mysql> start slave;
mysql> show slave status;

MySQL主主备份(均摊写压力):

在主从备份的基础上如下操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@xy ~]# vim /etc/my.cnf
  主: 192.168.10.10
  [mysqld]
  log-bin=mysql.bin
  server-id=10
  replace-do-db=test
  binlog-ignore-db=mysql
  binlog-ignore-db=information_schema
  auto-increment-increment=2
  auto=increment-offset=1

mysql> change master to
	-> master_user='slave',
	-> master_password='123456',
	-> master_host='192.168.10.20',
	-> master_log_file='mysql-bin.000004',
	-> master_log_pos=259;
mysql> start slave;
mysql> show slave status\G;

  备: 192.168.10.20
  [mysqld]
  log-bin=mysql.bin
  server-id=20
  replace-do-db=test
  binlog-ignore-db=mysql
  binlog-ignore-db=information_schema
  auto-increment-increment=2
  auto=increment-offset=1
mysql> grant replication slave on *.* to slave@'192.168.10.10' identified by '123456';
mysql> show master status;

4.1 使用PXE+Kickstat无人值守安装服务

  • PXE(Preboot eXecute Environment)—预启动执行环境,可以让计算机通过网络来启动操作系统,主要用于在无人值守安装系统中引导客户端安装Linux操作系统
  • Kickstat无人值守安装方式,预先把手工填写参数保存为ks.cfg文件,安装过程自动匹配Kickstat生成的文件
  • DHCP + vsftp + tftp + Kickstart

4.2 DHCP服务程序配置 (192.168.37.10 无人值守系统服务器IP)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[root@xy ~]# yum install dhcp
[root@xy ~]# vim /etc/dhcp/dhcpd.conf  # /usr/share/doc/dhcp*/dhcpd.conf.example
  #
  # DHCP Server Configuration file.
  #   see /usr/share/doc/dhcp*/dhcpd.conf.example
  #   see dhcpd.conf(5) man page
  #
  allow booting;
  allow bootp;
  ddns-update-style interim;
  ignore client-updates;
  subnet 192.168.37.0 netmask 255.255.255.0 {  # 填写网段
      option subnet-mask  255.255.255.0
      option domain-name-server   192.168.37.10;
      range dynamic-bootp 192.168.37.100  192.168.37.200;
      default-lease-time  21600;
      max-server  43200;
      next-server 192.168.37.10;    # tftp server 的 IP
      filename"pxelinux.0";         # 客户机获取IP 主动获取引导驱动文件
  }
[root@xy ~]# systemctl restart dhcpd
[root@xy ~]# systemctl enable dhcpd
  ln -s '/usr/lib/systemd/system/dhcpd.service' '/etc/systemd/system/multi-user.target.wants/dhcpd.service'

4.3 TFTP服务程序配置，为客户机提供引导及驱动文件,默认占用端口 69/UDP

1
2
3
4
5
6
7
[root@xy ~]# yum install tftp-server
[root@xy ~]# vim /etc/xinetd.d/tftp
  disable = no
[root@xy ~]# firewall-cmd  --permanent --add-port=69/udp
  success
[root@xy ~]# firewall-cmd --reload
  success

4.4 SYSLinux服务程序配置, 提供引导加载服务程序

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@xy ~]# yum install syslinux   # /usr/share/syslinux 引导文件
[root@xy ~]# cd /var/lib/tftpboot/
[root@xy tftpboot]# cp /usr/share/syslinux/pxelinux.0 .
[root@xy tftpboot]# cp /media/cdrom/images/pxeboot/{vmlinuz,initrd.img} .
[root@xy tftpboot]# cp /media/cdrom/isolinux/{vesamenu.c32,boot.msg} .
[root@xy tftpboot]# mkdir pxelinux.cfg
[root@xy tftpboot]# cp /media/cdrom/isolinux/isolinux.cfg pxelinux.cfg/default
[root@xy tftpboot]# ls
  boot.msg  initrd.img  pxelinux.0  pxelinux.cfg  vesamenu.c32  vmlinuz

[root@xy tftpboot]# vim /pxelinux.cfg/default
  default linux    # 1行   vesamenu.c32
  label linux  	   # 61行
      menu label ^Install Red Hat Enterprise Linux 7.0
      kernel vmlinuz
      append initrd=initrd.img inst.stage2=hd:LABEL=RHEL-7.0\x20Server.x86_64 quiet
  # 64行改为
      append initrd=initrd.img inst.stage2=ftp://192.168.37.10 ks=ftp://192.168.37.10/pub/ks.cfg quiet

4.5 vsftp服务程序配置，光盘镜像通过FTP协议传输

1
2
3
4
5
6
7
8
9
10
[root@xy ~]# yum install vsftpd
[root@xy ~]# systemctl restart vsftpd
[root@xy ~]# systemctl enable vsftpd
  ln -s '/usr/lib/systemd/system/vsftpd.service' '/etc/systemd/system/multi-user.target.wants/vsftpd.service'
[root@xy ~]# cp -r /media/cdrom/* /var/ftp
[root@xy ~]# firewall-cmd --permanent --add-service=ftp
  success
[root@xy ~]# firewall-cmd --reload
  success
[root@xy ~]# setsebool -P ftpd_connect_all_unreserved=on

4.6 创建应答文件Kickstart

1
2
3
4
5
6
7
8
[root@xy ~]# cp ~/anaconda-ks.cfg /var/ftp/pub/ks.cfg
[root@xy ~]# chmod +r /var/ftp/pub/ks.cfg
[root@xy ~]# vim /var/ftp/pub/ks.cfg
  url --url=ftp://192.168.37.10     # 1行
  timezone Aisa/Shanghai --isUtc    # 21行
  cleanpart --all --initlable       # 29行

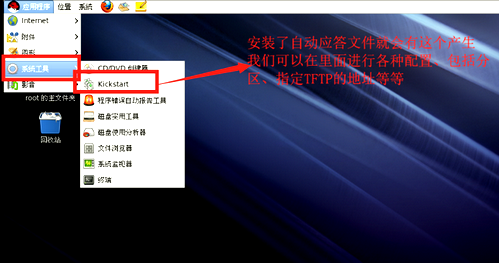

[root@xy ~]# yum istall system-config-kickstart # 图形化Kickstart应答文件生成工具

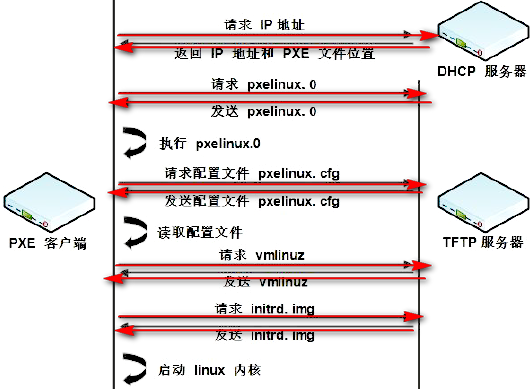

  • DHCP: 给未安装操作系统的机子分配静态IP, 并加载引导驱动文件 pxelinux.0;
  • tftp(基于 UDP 文件传输协议): 为客户机提供引导及驱动文件;
  • SYSLinux: 复制引导文件 pxelinux.0 到TFTP 默认目录中, 创建 /pxelinux.cfg/defalut 文件;
  • vsftp: 将光盘镜像挂载到 media/cdrom, 复制到 vsftp 工作目录;
  • 创建 Kickstart 应答文件: /var/ftp/pub/ks.cfg

4.1 Cobbler 无人值守安装服务

1
2
[root@localhost ~]# systemctl disable firewalld.service
[root@localhost ~]# setenforce 0

4.2 安装配置Cobbler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[root@xy ~]# yum -y instal epel-release
[root@xy ~]# yum install cobbler cobbler-web pykickstart debmirror
[root@xy ~]# systemctl restart httpd  	# 共享镜像
[root@xy ~]# systemctl enable httpd
[root@xy ~]# systemctl restart cobblerd
[root@xy ~]# systemctl enable cobblerd
[root@xy ~]# netstat -antp | grep 25151
[root@xy ~]# vim /etc/cobbler/settings
  server: 10.10.10.11  		# 指定TFTP服务器地址
  next_server: 10.10.10.11    # 指定Cobbler服务器地址
  manage_dhcp: 1			    # 把对dhcp管理服务开启
[root@xy ~]# cobbler get-loaders
[root@xy ~]# systemctl enable rsyncd
[root@xy ~]# systemctl restart rsyncd
[root@xy ~]# vim /etc/debmirror.conf  # 安装操作系统类型
  @dists="sid";  # 注释
  #@arches="i386";  # 注释
[root@xy ~]# openssl passwd -l -salt $(openssl rand -hex 4)  # 生成加密字符串
[root@xy ~]# vim /etc/cobbler/settings
  default_passsword_cryptes:"加密字符串"
[root@xy ~]# yum install cman fence-agents

4.3配置tftp服务

1
2
3
4
5
6
7
8
9
10
[root@localhost ~]# yum install xinetd
[root@xy ~]# vim /etc/xinetd.d/tftp  # tftp基于xinetd服务
  disabled=no 	# 开启tftp服务
[root@xy ~]# systemctl start xinetd
[root@xy ~]# systemctl enable xinetd
[root@xy ~]# systemctl restart tftp
[root@xy ~]# systemctl enable tftp
[root@xy ~]# systemctl restart cobblerd
[root@xy ~]# cobbler sync		# 同步配置文件
[root@xy ~]# cobbler check

4.4配置DHCP服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@xy ~]# yum install dhcp
[root@xy ~]# vim /etc/dhcp/dhcpd.conf
  option domain-name "chinasoft.com";		      # 域
  option domain-name-servers 114.114.114.114,8.8.8.8;
  default-lease-time  43200;
  max-server  86400;
  log-facility local 7;
    subnet 10.10.10.0 netmask 255.255.255.0 {     # 填写网段
  range dynamic-bootp 10.10.10.100 10.10.10.200;  # 地址池
  option routers	10.10.10.11 		          # 网关
        option subnet-mask  255.255.255.0         # 掩码
  option domain-name-servers 10.10.10.2;          #修改DNS
    }
  next-server 10.10.10.11;                        # tftp server 的 IP
    filename"pxelinux.0";       # 客户机获取IP 主动获取引导驱动文件
[root@xy ~]# systemctl restart dhcpd
[root@xy ~]# systemctl enable dhcpd
[root@xy ~]# systemctl restart cobblerd
[root@localhost ~]# cobbler sync  # 同步生成DHCP配置文件

4.5导入镜像

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[root@xy ~]# mkdir /mnt/cdrom/ && mount -t iso9660 /dev/cdrom /mnt/cdrom
[root@localhost ~]# cobbler import --path=/mnt/cdrom --name="CentOS7.6"
[root@localhost ~]# cobbler import --path=/mnt/cdrom --name="CentOS6.8"
  10.10.10.11/cobbler
  /var/www/cobbler/ks_mirror/CentOS-7-x86_64    # 导入的镜像文件存放的位置
  /var/lib/cobbler/kickstarts                   # 应答文件存放位置

[root@xy ~]# cobbler distro list                # cobbler profile list
  centos7.6-x86_64
  centos6.8-x86_64
[root@xy ~]# cobbler profile remove --name=centos7.6-x86_64  # 删除自带应答文件
[root@xy ~]# mv centos7-x86_64.cfg centos6-x86_64.cfg /var/lib/cobbler/kickstarts
  #Use NFS installation Media
  url --url="image link"
  #Root password
  rootpw --iscrypted $default_password_crypted
[root@xy ~]# cobbler profile add --name=centos6.5-x86_67-basic --distro=centos6.5-x86_64 --kickstart=/var/lib/cobbler/kickstart/centos6.5-x86_64.cfg  # 匹配
[root@xy ~]# cobbler profile list
  centos6.8-basic
  centos7.6-basic
[root@xy ~]# cobbler sync
Devops, linux
#linux #Devops
Linux服务配置03
https://anyu967.github.io/posts/c7601bf8.html
作者
anyu967
发布于
2019年6月11日
许可协议
